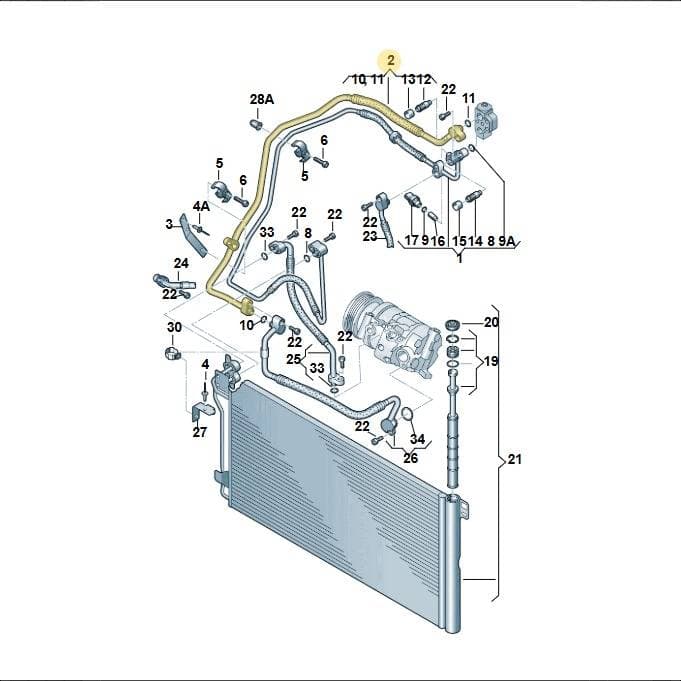

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Refrigerant Hose, part number 7E1820743C. This hose connects components within the vehicle's air conditioning system, allowing for movement and vibration absorption. It is positioned as item 2 in the diagram. The hose has a length of 0.645 meters. Genuine OEM hoses are constructed with specific materials to withstand refrigerant pressure and temperature fluctuations.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 84189990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 64.5 × 58 × 8.5 cm
- Shipping weight
- 0.48 kg
Parts diagram & fitment
4 vehiclesRefrigerant Hose — locate 7E1820743C Volkswagen Refrigerant Hose | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(33)
- 1Pipe 7E1820741C
- 1Pipe 7E1820741F
- 1Pipe 7E1820741B
- 2Hose 7H1820743AA
- 2Hose 7H1820743AB
- 2Hose 7H1820743T
- 3Bracket 7H0820791B
- 4Screw N01396921
- 4APop Rivet N90437401
- 5Clip 7E0820775
- 6Bolt N10704501
- 7Part N90252104
- 8Seal Ring 3D0260749C
- 9Seal Ring 8E0260749
- 10Seal Ring 4E0260749B
- 11Seal Ring 7H0820898
- 12Valve 8E0820855
- 13Part 3C0820231
- 15Part 3C0820581
- 16Part 7D0820855
- 17Sensor 1K0959126D
- 19Insert 4H0298403
- 20Part 7L0820231A
- 21Condenser 7E0820411B
- 22Screw N10414402
- 25Hose 7E0820721B
- 26Pipe 7E0820744C
- 27Bracket 7H0820770C
- 28Part 811807577C
- 29Screw N10657201
- 30Clamp N0206474
- 33Seal Ring 4E0260749A
- 34Seal Ring 8E0260749C
Diagrams & fitment data powered by oemdiagrams.com
7E1820743C Volkswagen Refrigerant Hose | Genuine OEM is fitted on: transp. caravelle 2009-2011; transp. dropside 2009-2011; transp. caravelle 2011-2015; transp. dropside 2011-2015.
