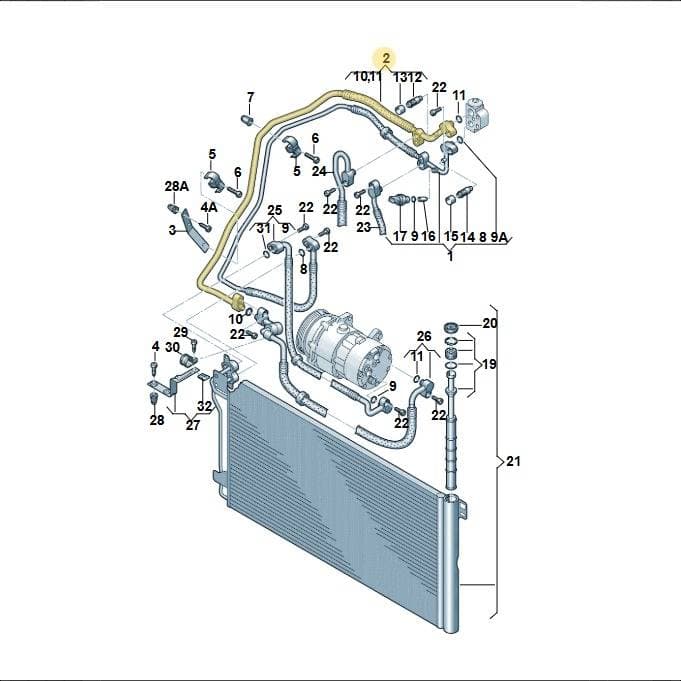

Number 2 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Refrigerant Hose, part number 7E1820743F. This hose transports refrigerant within the vehicle's air conditioning system. It is located as part 2 in the diagram. The hose has a length of 0.83 meters. Genuine OEM hoses are constructed with specific materials and tolerances to ensure durability and prevent leaks in the high-pressure A/C system.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 84189990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 83 × 40 × 9.5 cm
- Shipping weight
- 0.43 kg
Parts diagram & fitment
2 vehiclesRefrigerant Hose — locate 7E1820743F Volkswagen Refrigerant Hose | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(41)
- 1Pipe 7E1820741E
- 1Part 7E1820741G
- 1Pipe 7E1820741H
- 1Part 7E1820741D
- 2Hose 7E1820743D
- 2Hose 7E1820743G
- 2Part 7H1820743AA
- 2Hose 7H1820743AB
- 2Hose 7H1820743T
- 3Bracket 7H0820791B
- 4Pop Rivet N90528204
- 4APop Rivet N90437401
- 5Clip 7E0820774
- 5Clip 7E0820774A
- 5Clip 7E0820775
- 6Bolt N10704501
- 6Part N90231601
- 7Part N90252104
- 8Seal Ring 3D0260749C
- 9Seal Ring 8E0260749
- 10Seal Ring 4E0260749B
- 11Seal Ring 7H0820898
- 12Valve 8E0820855
- 13Part 3C0820231
- 15Part 3C0820581
- 16Part 7D0820855
- 17Sensor 1K0959126E
- 19Insert 4H0298403
- 21Condenser 7E0820411D
- 22Screw N10414402
- 25Hose 7E0820721D
- 25Hose 7E0820721F
- 25Hose 7E0820721G
- 25Hose 7H0820721AD
- 26Pipe 7E0820744D
- 26Pipe 7H0820744Q
- 27Bracket 7H0820770C
- 27Bracket 7H0820769D
- 29Screw N10657201
- 30Cable Tie 3D0971838N
- 31Seal Ring 4E0260749A
Compatible / alternative parts(7)
Diagrams & fitment data powered by oemdiagrams.com
7E1820743F Volkswagen Refrigerant Hose | Genuine OEM is fitted on: transp. caravelle 2011-2015; California Camper 2011-2015.
