Target · Diagram
Find this reference above

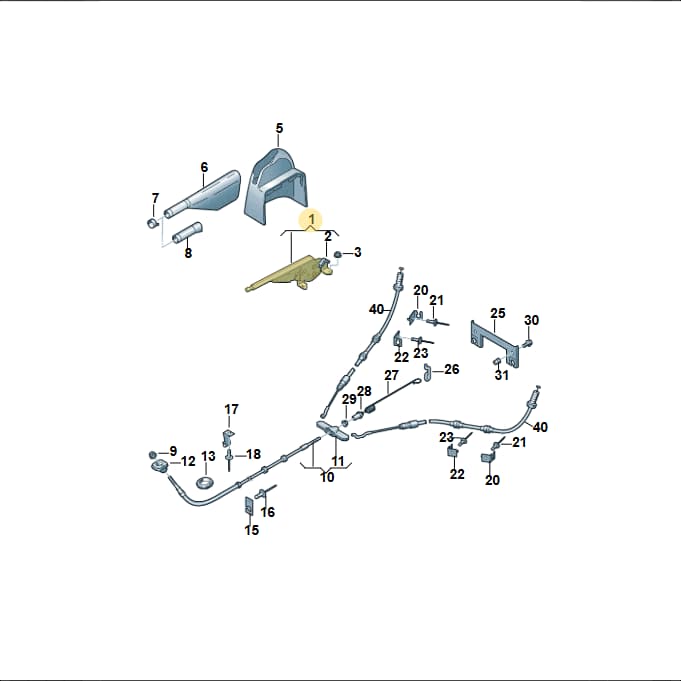

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Handbrake Handle Lever, part number 7E2711301R. This essential component allows the driver to manually engage and disengage the vehicle's parking brake mechanism. It is specifically designed for vehicles with a Right-Hand Drive (RHD) configuration. Weighing 1.167 kg, a genuine OEM handbrake lever ensures ergonomic design, robust construction, and precise mechanical action, critical for reliable and safe parking brake operation.
Technical details
- Category
- Brakes
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 47 × 11 × 6.5 cm
- Shipping weight
- 1.17 kg
Parts diagram & fitment

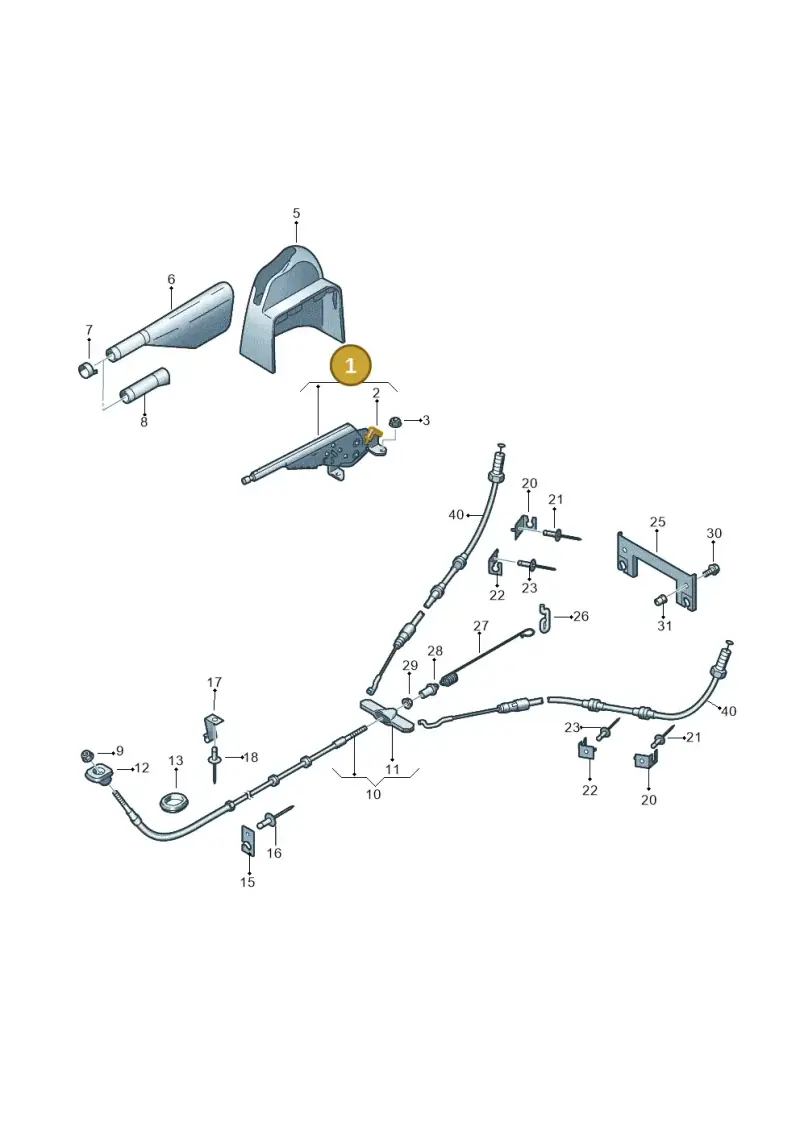

2 vehiclesBrake Lever — locate 7E2711301R Volkswagen Handbrake Handle Lever | RHD in the official exploded view and explore the surrounding assembly.
RThis part is the Right side
Parts in this assembly(36)
- 1Brake LevLeft7E1711301R
- 1Brake LevRight7E2711301Q
- 1Brake LevLeft7E1711301Q
- 2Switch 1H0947561A
- 3Collar Nut N10609201
- 5TrimRight7H2711464A
- 5TrimLeft7E1711464A
- 6Handl 7E0711461
- 9Ut"hex Nut Self-locking With Washer Hex Nut N90286705
- 10Cable 7H0711476J
- 10CableLeft7H1711476G
- 10CableRight7H2711476F
- 10Cable 7H3711476G
- 10CableLeft7L1711476A
- 10CableRight7L2711476A
- 10Cable 7LA711476A
- 10Cable 7LA711476C
- 11Lever 7H0711481A
- 12Seal 7H0711489
- 13Seal 7H0711489A
- 15Bracket 7H3711403
- 15Bracket 7H3711495
- 16Pop Rivet N90437401
- 17BracketRight7H2711495B
- 17BracketLeft7H1711495A
- 20BracketLeft7E0711443A
- 20BracketRight7E0711444A
- 20Bracket 7H0711454
- 21Pop Rivet N90923602
- 22Bracket 7H0711453
- 25Abutment 7H0711804
- 26Bracket 7H0711249
- 27Spring 7H0711975D
- 28Bracket 701711367
- 30Bolt N10156009
- 31Part N90938701
Diagrams & fitment data powered by oemdiagrams.com
7E2711301R Volkswagen Handbrake Handle Lever | RHD is fitted on: transport. multivan 2019-2024; caravelle 2015-2019.
