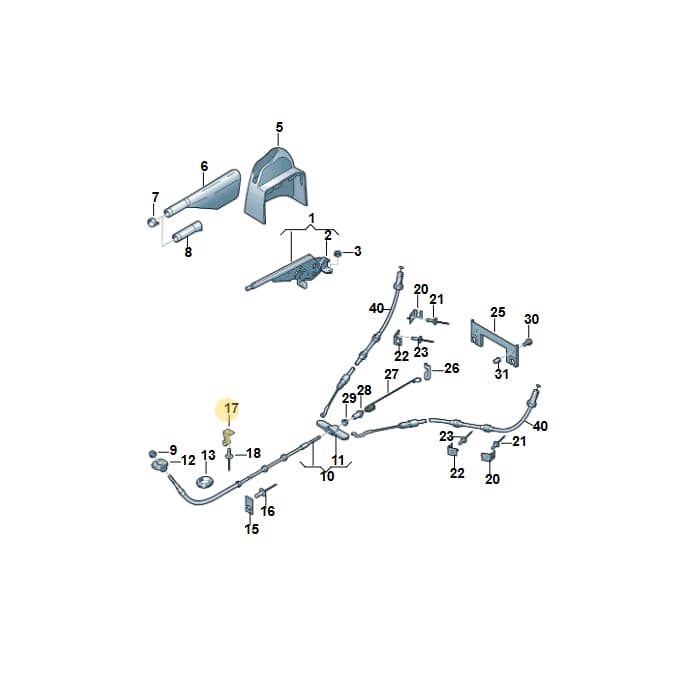

Number 17 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Hand Brake Cable Clamp, part number 7H1711495A. This essential clamp is designed to securely fasten and guide the hand brake cable, maintaining its correct routing and tension within the braking system. Its robust construction ensures the cable remains in place, preventing slack or interference. Measuring 49mm long, 29mm wide, and 25mm high, it provides a precise fit. Using a genuine OEM clamp ensures the correct material strength and design for reliable long-term operation of the hand brake system.
Technical details
- Category
- Brakes
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 4.9 × 2.9 × 2.5 cm
- Shipping weight
- 0.02 kg
Parts diagram & fitment
26 vehiclesBracket — locate 7H1711495A Volkswagen Hand Brake Cable Clamp | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(36)
- 1Brake LevLeft7E1711301R
- 1Brake LevRight7E2711301Q
- 1Brake LevRight7E2711301R
- 1Brake LevLeft7E1711301Q
- 2Switch 1H0947561A
- 3Collar Nut N10609201
- 5TrimRight7H2711464A
- 5TrimLeft7E1711464A
- 6Handl 7E0711461
- 9Ut"hex Nut Self-locking With Washer Hex Nut N90286705
- 10Cable 7H0711476J
- 10CableLeft7H1711476G
- 10CableRight7H2711476F
- 10Cable 7H3711476G
- 10CableLeft7L1711476A
- 10CableRight7L2711476A
- 10Cable 7LA711476A
- 10Cable 7LA711476C
- 11Lever 7H0711481A
- 12Seal 7H0711489
- 13Seal 7H0711489A
- 15Bracket 7H3711403
- 15Bracket 7H3711495
- 16Pop Rivet N90437401
- 17BracketRight7H2711495B
- 20BracketLeft7E0711443A
- 20BracketRight7E0711444A
- 20Bracket 7H0711454
- 21Pop Rivet N90923602
- 22Bracket 7H0711453
- 25Abutment 7H0711804
- 26Bracket 7H0711249
- 27Spring 7H0711975D
- 28Bracket 701711367
- 30Bolt N10156009
- 31Part N90938701
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
7H1711495A Volkswagen Hand Brake Cable Clamp | Genuine OEM is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; Single-cab transp. 2019-2024; TRANSPORTER 2003-2005; CAMPMOBILE(T5) 2004-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER 06 2005-2006; TRANSPORTER/4MOTION 07 2006-2007; TRANSPORTER OFFEN (7J) 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; TRANSPORTER GESCHL. 08 2007-; TRANSPORTER OFFEN 08 2007-; CAMPMOBIL-T5 08 2007-; transp. caravelle 2008-2009; transp. dropside 2008-2009; California Camper 2008-2009; transp. caravelle 2009-2011; transp. dropside 2009-2011; California Camper 2009-2011; transp. caravelle 2011-2015; transp. dropside 2011-2015; California Camper 2011-2015; caravelle 2015-2019; Single-cab transp. 2015-2019; California Camper 2015-2019.
