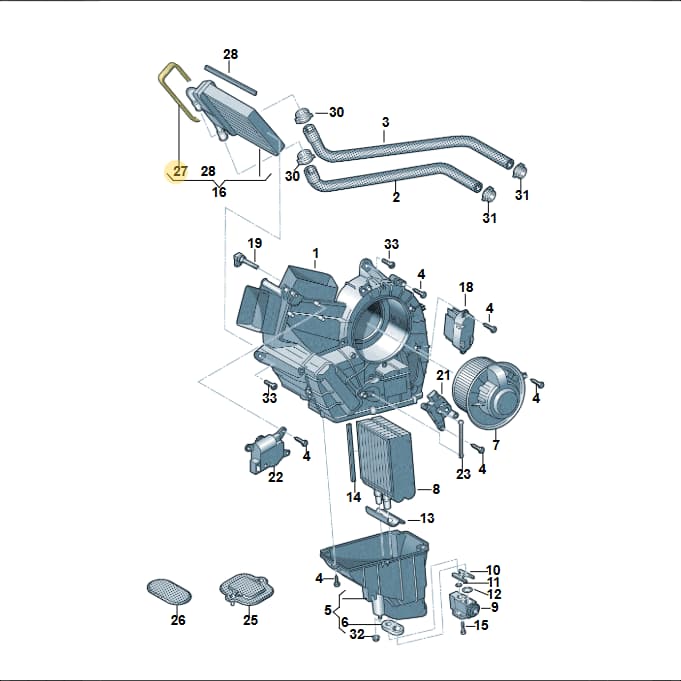

Number 27 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heat Exchanger Side Seal, part number 7H0819109. This essential sealing component is designed to fit precisely around the side of the heat exchanger, typically found within the vehicle's heating, ventilation, and air conditioning (HVAC) system. Its function is to prevent air bypass or leakage, ensuring that all airflow passes through the heat exchanger for effective temperature regulation. Weighing 0.015 kg and measuring approximately 49.8 cm in length, it is a flexible, form-fitting seal. Choosing genuine OEM guarantees the correct material properties for durability and resistance to temperature fluctuations, ensuring a tight, long-lasting seal and optimal HVAC system performance.
Technical details
- Category
- Gaskets & Seals
- Customs (HS) code
- 40169300
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 49.8 × 3 × 1 cm
- Shipping weight
- 0.02 kg
Parts diagram & fitment
21 vehiclesSeal — locate 7H0819109 Volkswagen Heat Exchanger Side Seal | HVAC System in the official exploded view and explore the surrounding assembly.
Parts in this assembly(36)
- 1Housing 7LA816049
- 1Housing 7LA819049A
- 2Int Duct 7H0819709C
- 2Int Duct 7H5820709C
- 3Air Flap 7H0820365A
- 4Screw N10424102
- 5Cover 7E0819024B
- 5Cover 7E0820024
- 6Seal 7H0820175
- 7Blower 7LA819021
- 8Evaporator 7E0820105A
- 9Expans Val 7E0816679
- 9Expans Val 7E0820679B
- 10Bracket 7L0820678
- 11Seal Ring 8E0260749
- 12Seal Ring 8E0260749A
- 13Seal 7H0820133
- 14Seal 7H0820130
- 15Screw N10476301
- 16Heat Exch 7H0819032
- 17Seal 7H0820099
- 18Regulator 2Q0907521
- 19Temperature Sensor 4B0820539
- 21Lever 7LA819292
- 21Servomotor 2Q0907511E
- 22Lever 7LA819291
- 23Coupl Rod 7H0819317
- 24Coupl Rod 7H0820341
- 25Hose 7H0819886D
- 26Bungs 7H0819598
- 28Seal 7H0819065
- 29Bracket 7H0819931
- 30Clamp N91225501
- 31Collar Nut N90455301
- 32Ut Hexagon Flange Nut Self-locking Hexagon N90887703
- 33Bolt N91079901
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
7H0819109 Volkswagen Heat Exchanger Side Seal | HVAC System is fitted on: transport. multivan 2019-2024; caravelle 2019-2024; TRANSPORTER 2003-2005; CAMPMOBILE(T5) 2004-2006; TRANSPORTER/4MOTION 06 2005-2006; TRANSPORTER/4MOTION 07 2006-2007; CAMPMOBIL (T5) 07 2006-2007; TRANSPORTER GESCHL. 08 2007-; CAMPMOBIL-T5 08 2007-; transp. caravelle 2008-2009; California Camper 2008-2009; transp. caravelle 2009-2011; California Camper 2009-2011; Sharan Blue Motion 2010-2015; transp. caravelle 2011-2015; California Camper 2011-2015; caravelle 2015-2019; Sharan BlueMotion 2015-2022; California Camper 2015-2019; Alhambra Stylance 2010-2013; Alhambra Stylance 2015-2022.
