7H0820105B Evaporator
€263.81 excl. VAT
- 7H0820105Not stocked
Jul 2010 - 7H0820105BThis pageNot stocked
Aug 2012 - 7E0820105ACurrent number
Special order item. Delivery time may vary.
About This Part
Superseded part number
This part number has been replaced. Order the current replacement shown above — the old number can no longer be supplied.
Order Processing & Delivery
This part is not stocked in our warehouse and will be ordered directly from the manufacturer upon purchase. Handling time for VOLKSWAGEN is typically 3–8 business days before dispatch.
Handling time for VAG (VW / Audi / Seat / Cupra): 3–8 business days from order confirmation to dispatch (Monday–Friday). Shipping transit for your country is added on top — see handling times by brand and shipping options.
* Delivery times are estimates and may vary based on manufacturer availability and your location.
Verify Vehicle Fitment
To ensure this part is compatible with your vehicle, please contact us with your VIN (Vehicle Identification Number). Our technical team can verify the exact fitment before you place your order.
Contact us with your VINParts diagram & fitment

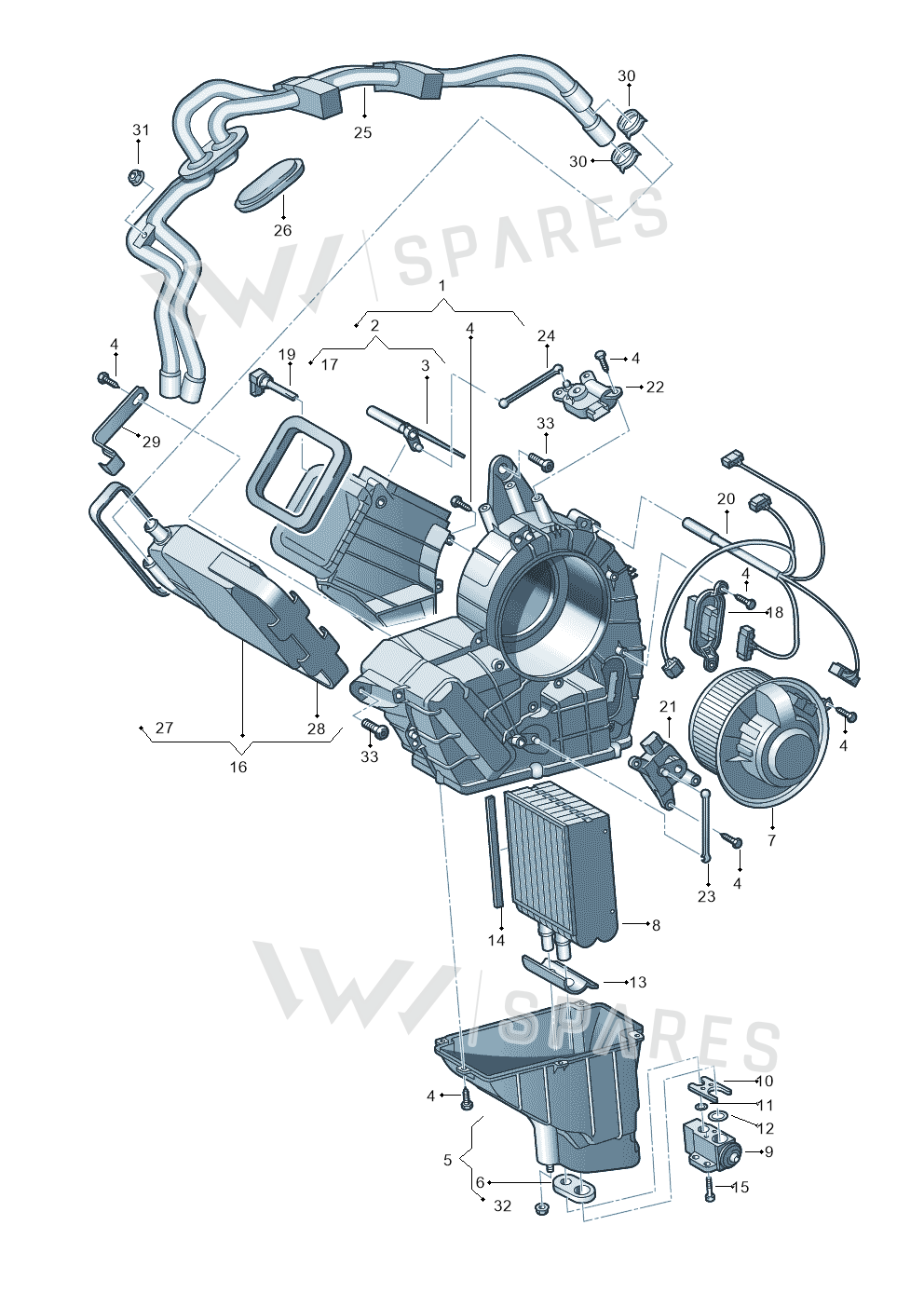

2 vehiclesEvaporator — locate Evaporator in the official exploded view and explore the surrounding assembly.
Parts in this assembly38
- 1Housing 7H0819049D
- 1Housing 7H0820049D
- 1Housing 7H5820049D
- 2Int Duct 7H0819709C
- 2Int Duct 7H0820709C
- 2Int Duct 7H5820709C
- 3Air Flap 7H0820365A
- 4Screw N10424102
- 5Cover 7H0819024A
- 5Cover 7H0820024A
- 6Seal 7H0820175
- 7Engine 7H0819021A
- 9Expans Val 7H0820679C
- 10Bracket 7L0820678
- 11Seal Ring 8E0260749
- 12Seal Ring 7H0820749
- 13Seal 7H0820133
- 14Seal 7H0820130
- 15Screw N10476301
- 16Heat Exch 7H0819032
- 17Seal 7H0820099
- 18Regulator 7L0907521B
- 18Resistance 7E0959263
- 19Temperature Sensor 4B0820539
- 20Wiring Set 7H5971569
- 21Motor 7H0907512B
- 22Servomotor 7H0907512C
- 23Coupl Rod 7H0819317
- 24Coupl Rod 7H0820341
- 25Hose 7H0819886D
- 26Bungs 7H0819598
- 27Seal 7H0819109
- 28Seal 7H0819065
- 29Bracket 7H0819931
- 30Clamp N90687001
- 31Collar Nut N90455301
- 32Ut Hexagon Flange Nut Self-locking Hexagon N90887703
- 33Bolt N90684104
Vehicle fitment table2
Europe (2)
| Vehicle | Years | Pos. | Remark | PR |
|---|---|---|---|---|
| transp. caravelle | 2009-2011 | 8 | 1 | PR |
| California Camper | 2009-2011 | 8 | 1 | PR |
Diagrams & fitment data powered by oemdiagrams.com
Evaporator is fitted on: transp. caravelle 2009-2011; California Camper 2009-2011.
