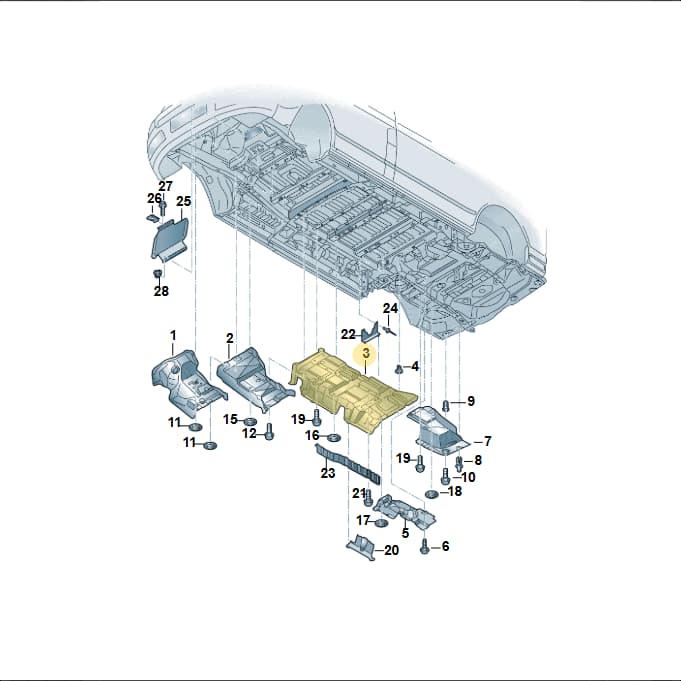

Number 3 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Front Middle Tunnel Heat Shield, part number 7E3825671G. This protective panel is installed underneath the vehicle, specifically in the front section of the middle tunnel area. Its primary function is to shield sensitive components from excessive heat generated by the exhaust system and drivetrain. Weighing 1.994 kg and measuring approximately 1.375m in length, a genuine OEM heat shield ensures precise contours, correct mounting points, and appropriate material composition for effective thermal insulation and long-term durability, preventing heat-related damage to vital systems.
Technical details
- Category
- Underbody & Splash Shields
- Customs (HS) code
- 87082990
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 137.5 × 76 × 20 cm
- Shipping weight
- 1.99 kg
Parts diagram & fitment
1 vehicleHeat Shield For Tunnel — locate 7E3825671G Volkswagen Middle Tunnel Heat Shield | Front in the official exploded view and explore the surrounding assembly.
Parts in this assembly(25)
- 1Heat Sh 7E0825651B
- 2Heat Sh 7E0825661F
- 2Heat Sh 7E0825661G
- 3Heat Sh 7E3825671E
- 3Heat Sh 7H3825681B
- 3Heat Sh 7E1825671E
- 3Heat Sh 7E1825671G
- 4Part 7H0825555A
- 5Heat Sh 7H0825691K
- 5Heat Sh 7H0825691L
- 6Screw N91067002
- 7Heat Sh 7H0825701D
- 7Heat Sh 7H0825701E
- 8Spring Rivet N90558401
- 9Part N90927801
- 10Bolt N10009506
- 11Washer N90335004
- 12Bolt N0195307
- 20Heat Sh 7H0825676A
- 21Bolt N91079901
- 23Heat Sh 7H0825675
- 25Heat Sh 7E0825757A
- 26Part N90168604
- 27Bolt N10653201
- 28Collar Nut N90757901
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
7E3825671G Volkswagen Middle Tunnel Heat Shield | Front is fitted on: caravelle 2015-2019.
