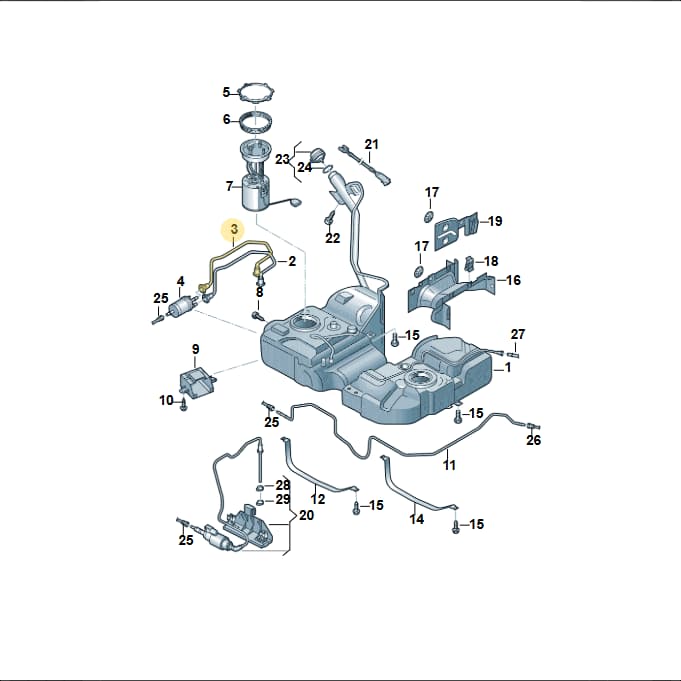

Number 3 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Return Line, part number 7N0201294. This component is essential for the fuel system, returning excess fuel from the engine back to the fuel tank to maintain optimal fuel pressure and prevent vapor lock. It connects to the fuel tank assembly. Weighing approximately 0.02 kg, this line is designed for specific fuel flow. Choosing a genuine OEM fuel return line ensures correct material composition for fuel resistance, precise routing, and secure connections, preventing leaks and ensuring safe fuel delivery.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 29 × 13.5 × 11 cm
- Shipping weight
- 0.02 kg
Parts diagram & fitment
4 vehiclesFuel Line — locate 7N0201294 Volkswagen Fuel Return Line | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(22)
- 1Container 7N0201060AF
- 2Fuel Line 7N0201293A
- 4Filter 7N0201051A
- 5Part 1K0201375
- 8Screw N90496802
- 9Retainer 5N0201292B
- 10Bolt N10471802
- 11Line 7N0201931
- 12Strap 7N0201655A
- 14Strap 7N0201656A
- 15Bolt N0195307
- 16Heat Sh 7N0201308C
- 17Washer N90335005
- 18Clip 7N0201402
- 19Heat Sh 7N0201308D
- 20Part 7N0201607G
- 21Line 1J0201142A
- 22Bolt N90693804
- 23Part 5Q0201550J
- 24Seal Ring 1K0201557A
- 28Clamp N10203501
- 29Clamp N10198301
Compatible / alternative parts(6)
Diagrams & fitment data powered by oemdiagrams.com
7N0201294 Volkswagen Fuel Return Line | Genuine OEM is fitted on: Sharan Blue Motion 2010-2015; Sharan BlueMotion 2015-2022; Alhambra Stylance 2010-2013; Alhambra Stylance 2015-2022.
