Target · Diagram
Find this reference above

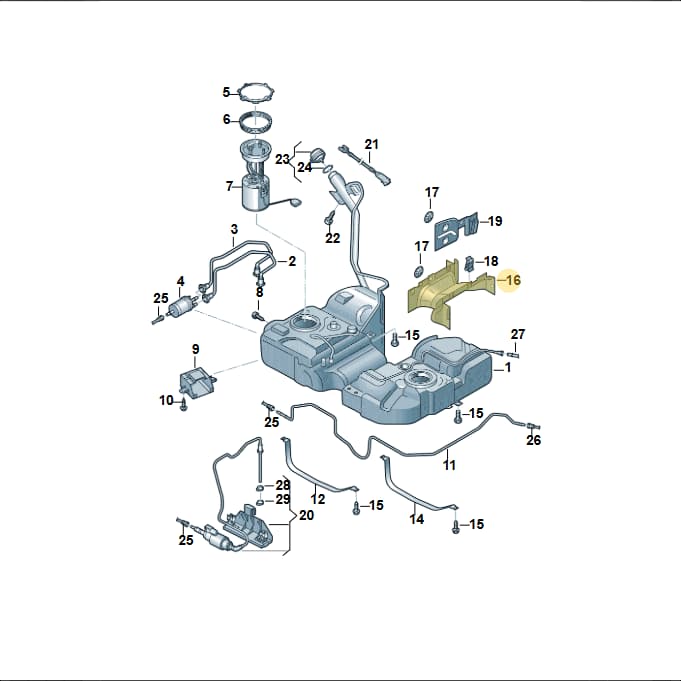

Number 16 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Tank Heat Shield, part number 7N0201308C. This shield is designed to protect the fuel tank from excessive heat generated by the exhaust system or other components. It is positioned above the fuel tank assembly. Weighing approximately 0.286 kg, this heat shield provides essential thermal insulation. Genuine OEM heat shields ensure the correct material composition and precise contours for effective heat deflection and long-term protection of critical fuel system components.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 52 × 41 × 15 cm
- Shipping weight
- 0.29 kg
Parts diagram & fitment

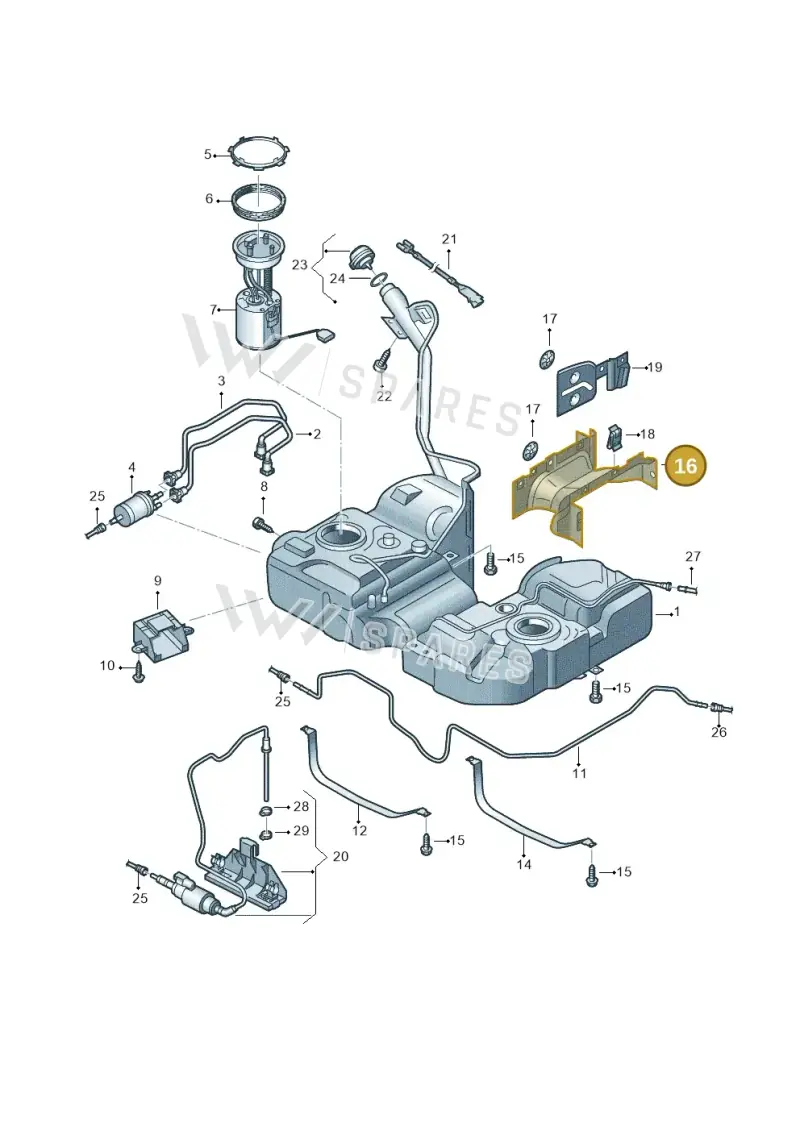

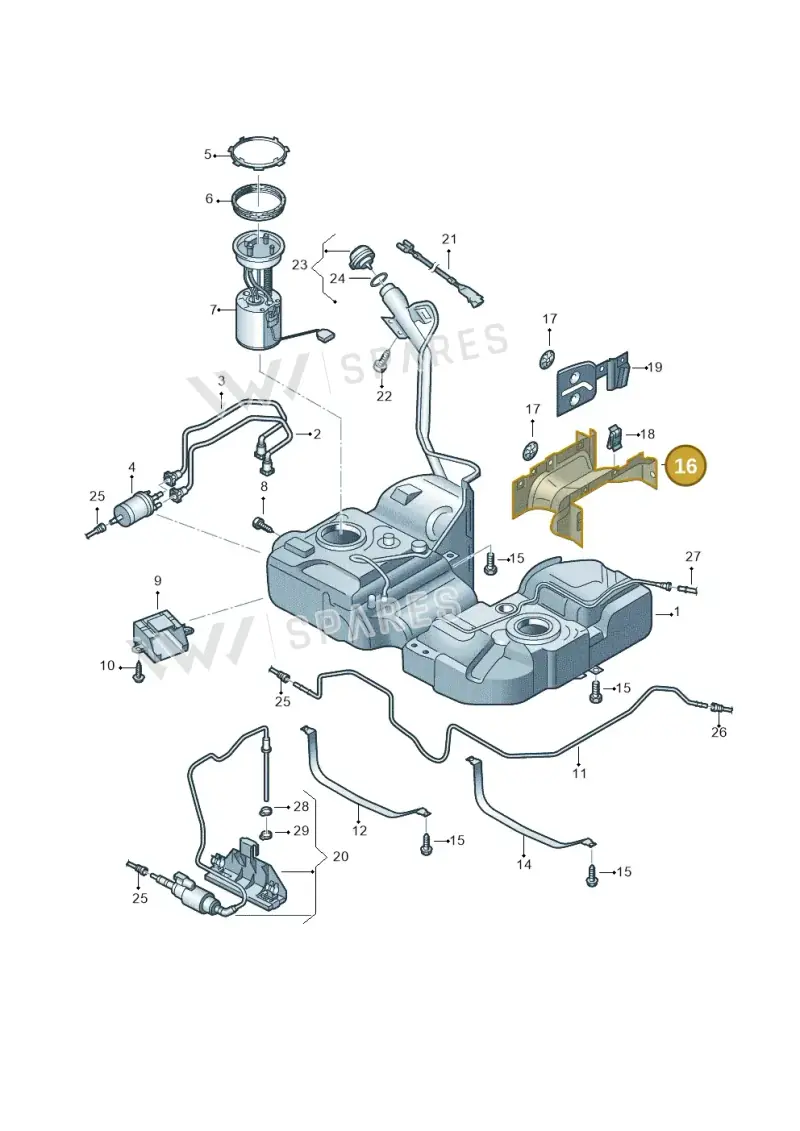

4 vehiclesHeat Shield — locate 7N0201308C Volkswagen Fuel Tank Heat Shield | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(22)
- 1Container 7N0201060AF
- 2Fuel Line 7N0201293A
- 3Fuel Line 7N0201294
- 4Filter 7N0201051A
- 5Part 1K0201375
- 8Screw N90496802
- 9Retainer 5N0201292B
- 10Bolt N10471802
- 11Line 7N0201931
- 12Strap 7N0201655A
- 14Strap 7N0201656A
- 15Bolt N0195307
- 17Washer N90335005
- 18Clip 7N0201402
- 19Heat Sh 7N0201308D
- 20Part 7N0201607G
- 21Line 1J0201142A
- 22Bolt N90693804
- 23Part 5Q0201550J
- 24Seal Ring 1K0201557A
- 28Clamp N10203501
- 29Clamp N10198301
Compatible / alternative parts(3)
Diagrams & fitment data powered by oemdiagrams.com
7N0201308C Volkswagen Fuel Tank Heat Shield | Genuine OEM is fitted on: Sharan Blue Motion 2010-2015; Sharan BlueMotion 2015-2022; Alhambra Stylance 2010-2013; Alhambra Stylance 2015-2022.
