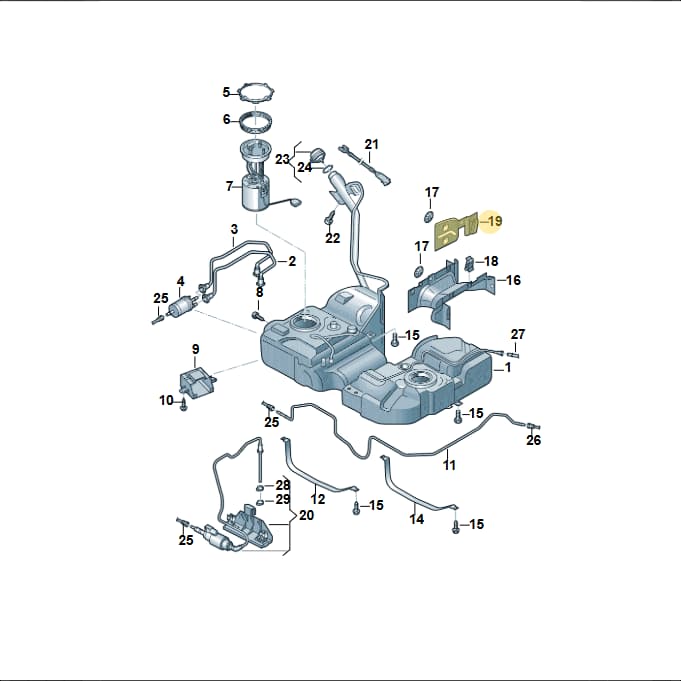

Number 19 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Tank Heat Plate, part number 7N0201308D. This component is designed to manage thermal conditions around the fuel tank, either by shielding it from external heat sources or assisting in temperature regulation. It is positioned above the fuel tank assembly. Weighing 0.077 kg, this genuine OEM heat plate ensures proper thermal management, crucial for the safety and efficiency of the fuel system.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 32.5 × 21 × 5 cm
- Shipping weight
- 0.08 kg
Parts diagram & fitment
4 vehiclesHeat Shield — locate 7N0201308D Volkswagen Fuel Tank Heat Plate | Genuine OEM in the official exploded view and explore the surrounding assembly.
Superseded by 7N0201308C — the later replacement part.
Parts in this assembly(22)
- 1Container 7N0201060AF
- 2Fuel Line 7N0201293A
- 3Fuel Line 7N0201294
- 4Filter 7N0201051A
- 5Part 1K0201375
- 8Screw N90496802
- 9Retainer 5N0201292B
- 10Bolt N10471802
- 11Line 7N0201931
- 12Strap 7N0201655A
- 14Strap 7N0201656A
- 15Bolt N0195307
- 16Heat Sh 7N0201308C
- 17Washer N90335005
- 18Clip 7N0201402
- 20Part 7N0201607G
- 21Line 1J0201142A
- 22Bolt N90693804
- 23Part 5Q0201550J
- 24Seal Ring 1K0201557A
- 28Clamp N10203501
- 29Clamp N10198301
Compatible / alternative parts(1)
Diagrams & fitment data powered by oemdiagrams.com
7N0201308D Volkswagen Fuel Tank Heat Plate | Genuine OEM is fitted on: Sharan Blue Motion 2010-2015; Sharan BlueMotion 2015-2022; Alhambra Stylance 2010-2013; Alhambra Stylance 2015-2022.
