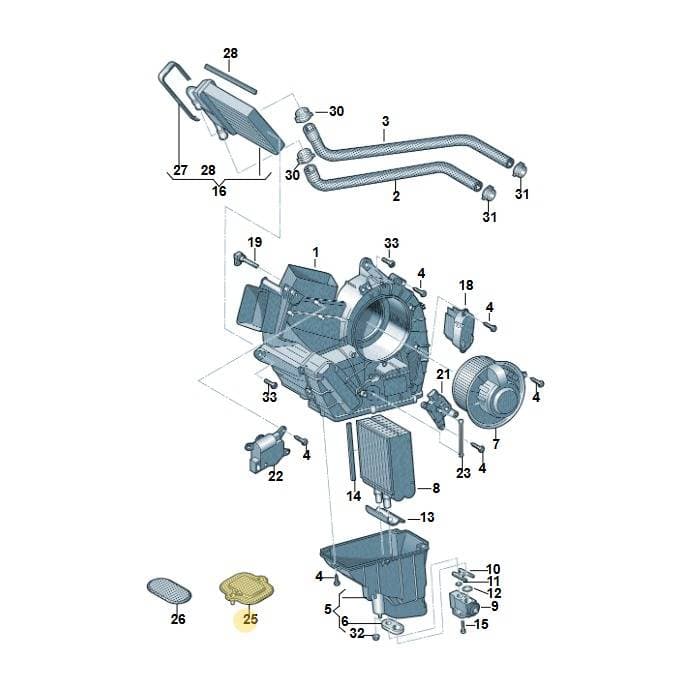

Number 25 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Socket Head Bolt, part number 7N0820668A. This is a specialized bolt designed for securely fastening components, often in areas requiring precise torque. It is located at position 25 in the provided diagram. The bolt has a weight of 0.079 kg. Genuine OEM bolts are manufactured to exact specifications, ensuring proper fit and reliable performance in critical applications.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 40169957
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 15.5 × 12.7 × 2.7 cm
- Shipping weight
- 0.08 kg
Parts diagram & fitment
1 vehicleGrommet — locate 7N0820668A Volkswagen Socket Head Bolt | Position 25 in the official exploded view and explore the surrounding assembly.
Superseded by 7N0820668B — the later replacement part.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(30)
- 1Housing 7N0820049
- 2Hose 7N0815991
- 3Hose 7N0815992
- 4Screw N10424102
- 5Cover 7H0820024B
- 6Seal 7H0820175
- 7Engine 7H0819021A
- 8Evaporator 7E0820105A
- 8Evaporator 7N0820101A
- 9Expans Val 7H0820679C
- 9Expans Val 7N0820712
- 10Bracket 7L0820678
- 11Seal Ring 8E0260749A
- 12Seal Ring 8E0260749
- 13Seal 7H0820133
- 14Seal 7H0820130
- 15Screw N10476301
- 16Heat Exch 7H0819032
- 18Regulator 7L0907521B
- 19Temperature Sensor 3D0907543A
- 21Motor 7E0907512
- 22Servomotor 7H0907512E
- 23Coupl Rod 7H0819317
- 26Bungs 7H0819598
- 27Seal 7H0819109
- 28Seal 7H0819065
- 30Clamp N90687001
- 31Clamp N90686902
- 32Ut Hexagon Flange Nut Self-locking Hexagon N90887703
- 33Bolt N90684104
Diagrams & fitment data powered by oemdiagrams.com
7N0820668A Volkswagen Socket Head Bolt | Position 25 is fitted on: Sharan Blue Motion 2010-2015.
