Product overview
Genuine OEM Volkswagen Evaporator, part number 7N0820101A. This component is part of the air conditioning system, responsible for absorbing heat from the cabin air as refrigerant passes through it, thereby cooling the air. It is located within the HVAC unit. Genuine OEM evaporators are manufactured to precise specifications for optimal cooling performance and system longevity.
Technical details
- Category
- Electrical & Wiring
- Customs (HS) code
- 84189910
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 31 × 17.5 × 8.2 cm
- Shipping weight
- 1 kg
Parts diagram & fitment

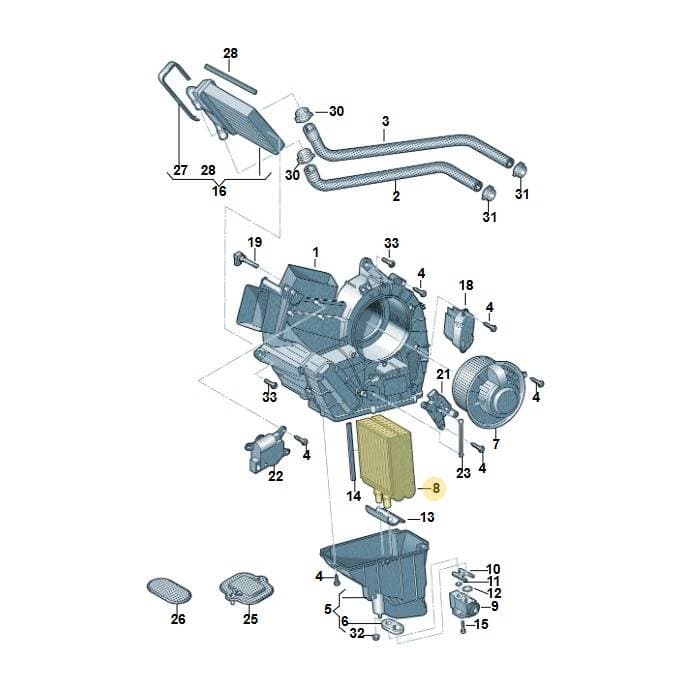

2 vehiclesEvaporator With Expansion Valve — locate 7N0820101A Volkswagen Evaporator | Genuine OEM in the official exploded view and explore the surrounding assembly.
This part is marked discontinued by the manufacturer; contact us to check current availability.
Parts in this assembly(30)
- 1Housing 7N0820049
- 2Hose 7N0815991
- 3Hose 7N0815992
- 4Screw N10424102
- 5Cover 7H0820024B
- 6Seal 7H0820175
- 7Engine 7H0819021A
- 8Evaporator 7E0820105A
- 9Expans Val 7H0820679C
- 9Expans Val 7N0820712
- 10Bracket 7L0820678
- 11Seal Ring 8E0260749A
- 12Seal Ring 8E0260749
- 13Seal 7H0820133
- 14Seal 7H0820130
- 15Screw N10476301
- 16Heat Exch 7H0819032
- 18Regulator 7L0907521B
- 19Temperature Sensor 3D0907543A
- 21Motor 7E0907512
- 22Servomotor 7H0907512E
- 23Coupl Rod 7H0819317
- 25Grommet 7N0820668A
- 26Bungs 7H0819598
- 27Seal 7H0819109
- 28Seal 7H0819065
- 30Clamp N90687001
- 31Clamp N90686902
- 32Ut Hexagon Flange Nut Self-locking Hexagon N90887703
- 33Bolt N90684104
Diagrams & fitment data powered by oemdiagrams.com
7N0820101A Volkswagen Evaporator | Genuine OEM is fitted on: Sharan Blue Motion 2010-2015; Alhambra Stylance 2010-2013.
