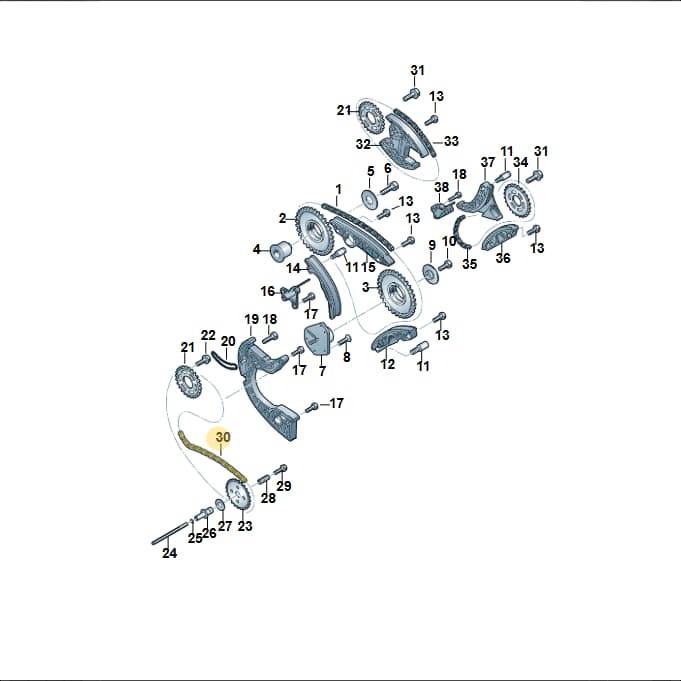

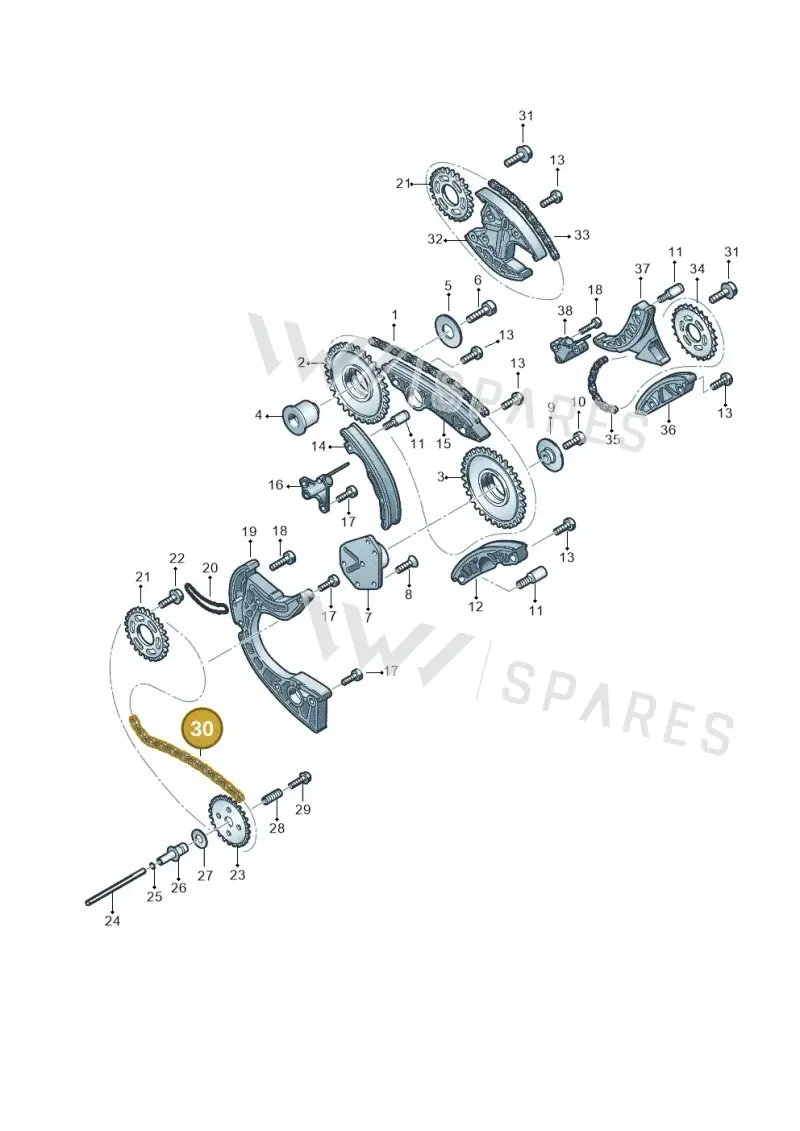

Number 30 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Timing Chain, part number 06E109465AQ. This chain synchronizes the rotation of the crankshaft and camshafts for proper engine timing. It is a critical component of the engine's valvetrain. Genuine OEM timing chains are manufactured to exact tolerances to ensure precise synchronization and prevent engine damage.
Technical details
- Category
- Belts, Chains & Tensioners
- Country of origin
- Germany
- Customs (HS) code
- 73151190
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 15 × 8.5 × 1 cm
- Shipping weight
- 0.53 kg
Parts diagram & fitment
21 vehiclesTiming Chain — locate 06E109465AQ Volkswagen Timing Chain | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(37)
- 1Chn Sprckt 079109077G
- 2Bush 079109135E
- 3Seal 079109139A
- 4Seal 079109139L
- 5Seal 079109139J
- 6Seal 079109139K
- 7Ax Bearing 079109180A
- 8Tensioner 079109217R
- 9Tensioner 079109218R
- 10Part 079109220A
- 11Part 079109224E
- 12Part 079109224F
- 14Ax Bearing 079109180B
- 18Plate 079109359BN
- 20Timing Cha 06E109465AN
- 22Timing Cha 06E109465AM
- 23Timing Cha 06E109465AP
- 25Rail 079109469AL
- 26Rail 079109469AM
- 28Tensioner 079109507M
- 29Tensioner 079109507AF
- 30Chn Sprckt 079109570AT
- 31Lining 079109470
- 35Seal 079103051E
- 36Seal 079103051J
- 40Seal D176501A1
- 41Ring N0124161
- 42Bolt N10124304
- 43Screw N10554005
- 44Screw N10660901
- 47Screw N90888502
- 48Bolt N90954903
- 49Screw N91046302
- 50Screw N91119601
- 51Screw N91129001
- 52Seal Ring N90740801
- 53Bolt N91071701
Compatible / alternative parts(12)
Diagrams & fitment data powered by oemdiagrams.com
06E109465AQ Volkswagen Timing Chain | Genuine OEM is fitted on: Audi A8/S8/qu. lang 2003-2007; Audi A6/S6/Avant/qu. 05> 2004-; Audi Q7 07> 2006-; AUDI A6 QU.ALLROAD 07> 2006-; Audi R8 08> 2007-; Audi A5/S5 Coupe 08> 2007-; Audi A8/S8/qu. lang 08> 2007-; AUDI A4 08> 2007-; Audi RS6 Avant qu.5.0 2007-2010; Audi Q5 qu. 2.0 TDI 2008-2012; Audi A6 2.7 TDI 2008-2011; Audi A5 Cabrio 2.0 2008-2012; Audi A4 Av. Allroad 2008-2016; Audi Q7 qu. 3.0 TDI 2009-2015; MARINE-MOTOR 02> 2002-; Touareg 2005-2006; Touareg 08> 2007-; PHAETON 08> 2007-; phaeton 4motion 2008-2010; touareg 2010-2012; phaeton 4motion 2010-2016.
