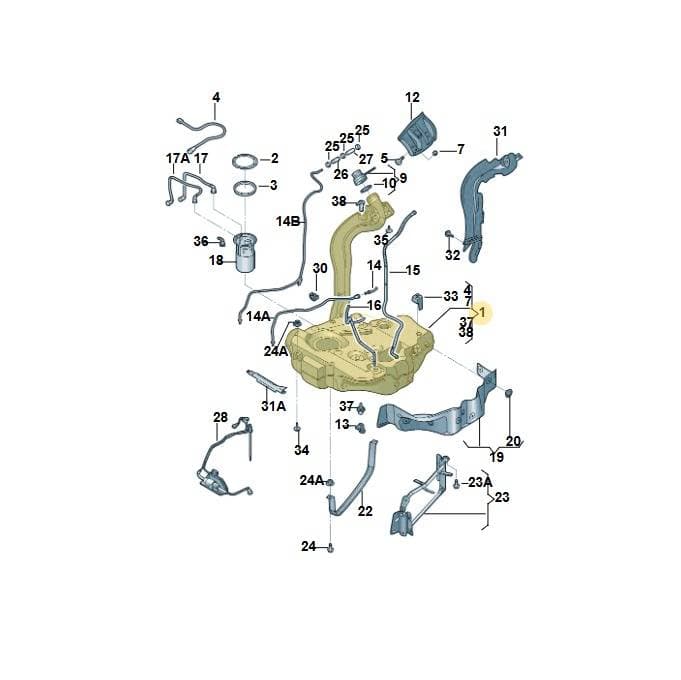

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Tank, part number 1K0201055AL. This fuel tank stores the vehicle's fuel supply for the engine. It is located as part of the fuel system assembly. The tank is constructed from durable materials to safely contain fuel. Genuine OEM parts ensure exact fitment and material integrity for reliable operation.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 109 × 93 × 7 cm
- Shipping weight
- 8.19 kg
Parts diagram & fitment
11 vehiclesFuel Tank — locate 1K0201055AL Volkswagen Fuel Tank | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(43)
- 1Part 1K0201055AF
- 1Part 1K0201055AM
- 1Container 1K0201060DQ
- 1Container 1K0201060FL
- 1Container 1K0201060FP
- 1Part 1K0201060FT
- 1Fuel Tank 1K0201060GL
- 1Container 1K0201060GP
- 1Part 1K0201055AE
- 2Part 1K0201375
- 3Seal Ring 1K0919133D
- 3Seal Ring 8E0919133B
- 3Seal Ring 1J0919133B
- 4Line 1J0201142A
- 4Line 1H0201142D
- 5Bolt N10189407
- 7Bush 1J0201048C
- 8End Piece 895201890
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 1K0201550AE
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 1K0201550AG
- 9Part 1K0201550AJ
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 1K0201550AL
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 1K0201550F
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 1K0201550N
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 1K0201550S
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 1K0201550Q
- 10Seal Ring 3C0201557
- 14Pipe 1K0201931AB
- 14Pipe 1K0201931G
- 14Pipe 1K0201931R
- 15Pipe 1K0201993AG
- 15Line 1K0201993M
- 15Line 1K0201993AF
- 16Line 1K0201995F
- 19Heat Sh 1Q0201307C
- 20Washer N90796502
- 22Strap 1K0201656C
- 24Bolt N0195306
- 25Clip N10199201
- 26Sleeve 1H0201316A
- 27Part N10303504
- 31Prot Plate 1K0201974F
- 32Pop Rivet N91003401
Diagrams & fitment data powered by oemdiagrams.com
1K0201055AL Volkswagen Fuel Tank | Genuine OEM is fitted on: Jetta "USA"05> 2005-; JETTA 06> 2005-; Jetta Vagon 08> 2008-; Golf/Rabbit 08> 2007-; golf 2.0 2008-2011; jetta 2008-2011; jetta variant 2009-2014; jetta 2010-2014; Golf 2011-2013; jetta 2014-2017; Audi A3 Sportback 2008-2013.
