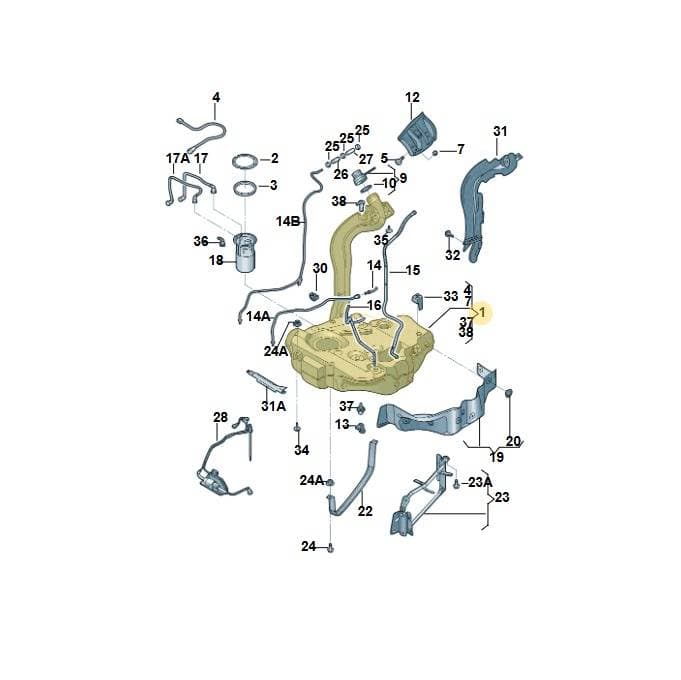

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Tank, part number 1K0201060GA. This fuel tank stores the vehicle's fuel supply, ensuring consistent delivery to the engine. It is a critical part of the fuel system. Genuine OEM construction ensures exact fit and material quality for safe fuel storage and optimal engine performance.
Technical details
- Category
- Fuel System
- Country of origin
- Germany
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 106 × 92 × 70.5 cm
- Shipping weight
- 8.17 kg
Parts diagram & fitment
23 vehiclesFuel Tank — locate 1K0201060GA Volkswagen Fuel Tank | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(34)
- 1Part 1K0201055AL
- 1Container 1K0201060DK
- 1Container 1K0201060DQ
- 1Fuel Tank 1K0201060FG
- 1Fuel Tank 1K0201060FN
- 2Part 1K0201375
- 3Seal Ring 1J0919133B
- 3Seal Ring 8E0919133B
- 4Line 1H0201142D
- 4Line 1J0201142A
- 5Bolt N10189407
- 7Bush 1J0201048C
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 1K0201550N
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 1K0201550Q
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 1K0201550T
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 1K0201550S
- 10Seal Ring 3C0201557
- 11Heat Sh 1K0201308L
- 14Pipe 1K0201931R
- 14Pipe 1K0201931G
- 15Line 1K0201993M
- 15Line 1K0201993AF
- 16Line 1K0201995F
- 19Heat Sh 1K0201307G
- 20Washer N90796502
- 22Strap 1K0201656C
- 24Bolt N0195308
- 25Clip N10199201
- 26Sleeve 1H0201316A
- 27Part N10303504
- 28Metering 1K0201607N
- 28Metering 1K0201607P
- 31Prot Plate 1K0201974F
- 32Pop Rivet N91003401
Diagrams & fitment data powered by oemdiagrams.com
1K0201060GA Volkswagen Fuel Tank | Genuine OEM is fitted on: JETTA 06> 2005-; JETTA 06> 2006-; GOLF VARIANT 07> 2007-; Golf/Rabbit 08> 2007-; GOLF PLUS 08> 2007-; golf 2.0 2008-2011; Golf Plus 1.6 2009-2011; jetta 2008-2011; golf estate 2009-2013; jetta 2010-2014; Golf 2011-2013; Golf Plus 2011-2014; jetta 2014-2017; jetta 2.0 2015-2015; TOLEDO 05> 2004-; LEON 06> 2005-; ALTEA 07> 2006-; Leon Stylance 2010-2012; Altea XL Reference 2010-2013; Audi A3/S3/Sportb./qu. 08 2007-; Audi A3 Sportback 2008-2013; OCTAVIA/COMBI/4X4 04> 2004-; octavia ambiente 2008-2013.
