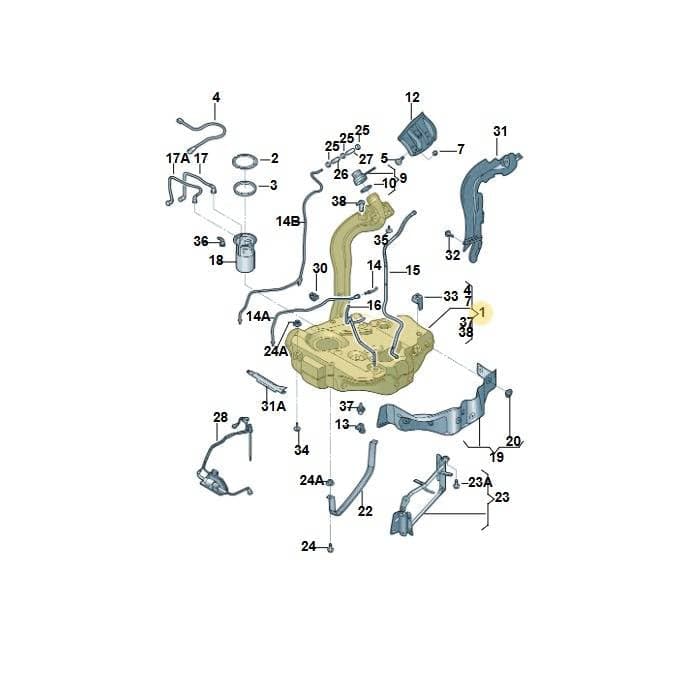

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Tank, part number 1K0201060HC. This fuel tank is responsible for storing and delivering fuel to the engine. It is located in the fuel system assembly. The tank is constructed from durable materials to ensure longevity and reliable fuel containment. Genuine OEM parts are manufactured to precise specifications for optimal performance and safety.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 111 × 101 × 66 cm
- Shipping weight
- 7.43 kg
Parts diagram & fitment
4 vehiclesFuel Tank — locate 1K0201060HC Volkswagen Fuel Tank | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(27)
- 1Container 1K0201060DQ
- 1Container 1K0201060FP
- 1Container 1K0201060GP
- 1Fuel Tank 1K0201060GL
- 2Part 1K0201375
- 3Seal Ring 1K0919133D
- 3Seal Ring 1J0919133B
- 4Line 1J0201142A
- 5Bolt N10189407
- 7Bush 1J0201048C
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 1K0201550AL
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 1K0201550AQ
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 5C0201550AB
- 10Seal Ring 1K0201557A
- 14Pipe 1K0201931G
- 15Line 1K0201993M
- 15Line 1K0201993AF
- 16Line 1K0201995F
- 19Heat Sh 1Q0201307C
- 20Clip 441863987B
- 22Strap 1K0201656C
- 24Bolt N0195308
- 25Clip N10199201
- 26Sleeve 191201316A
- 27Part N10303504
- 31Prot Plate 1K0201974F
- 32Pop Rivet N91003401
Diagrams & fitment data powered by oemdiagrams.com
1K0201060HC Volkswagen Fuel Tank | Genuine OEM is fitted on: jetta variant 2009-2014; jetta 2010-2014; Golf 2011-2013; jetta 2014-2017.
