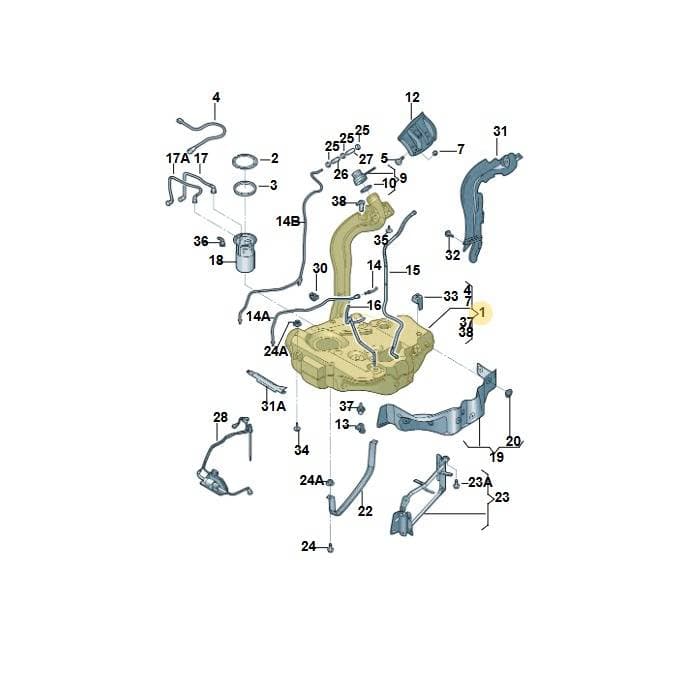

Number 1 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Fuel Tank, part number 5C0201055H. This tank stores the vehicle's fuel supply. It is located in the fuel system assembly. Genuine OEM fuel tanks are designed for precise fitment and are made from materials that resist fuel degradation, ensuring safe and reliable fuel storage.
Technical details
- Category
- Fuel System
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 111.5 × 90 × 63 cm
- Shipping weight
- 8.86 kg
Parts diagram & fitment
2 vehiclesFuel Tank — locate 5C0201055H Volkswagen Fuel Tank | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(48)
- 1Part 1K0201055AL
- 1Container 1K0201055AM
- 1Container 1K0201060DQ
- 1Container 1K0201060FT
- 1Container 1K0201060GA
- 1Fuel Tank 1K0201060GL
- 1Container 1K0201060GP
- 1Container 1K0201060HC
- 1Container 5C0201055G
- 1Part 5C0201055J
- 1Container 5C0201055K
- 1Container 5C0201060F
- 2Part 1K0201375
- 3Seal Ring 1K0919133D
- 3Seal Ring 1J0919133B
- 4Line 1J0201142A
- 4Line 1H0201142D
- 5Bolt N10189407
- 7Bush 1K0201048A
- 7Bush 1J0201048C
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 1K0201550AM
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 1K0201550F
- 9Part 3D0201550AC
- 9Part 3D0201550AF
- 9Part 3D0201550R
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 3D0201550T
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 5C0201550AC
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 5C0201550E
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 5C0201550M
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 5C0201550T
- 9Part 5Q0201550J
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 5Q0201550L
- 10Seal Ring 1K0201557A
- 13Sensor 5C0201733
- 14Pipe 1K0201931AB
- 14APipe 5C0201931D
- 14APipe 5C0201931H
- 14APipe 1K0201931H
- 14BPipe 5C0201931
- 14BPipe 1K0201931G
- 15Line 1K0201993AF
- 15Pipe 1K0201993AG
- 15Line 1K0201993M
- 16Line 1K0201995F
- 19Heat Sh 5C0201307A
- 19Heat Sh 1Q0201307C
- 20Clip 441863987B
- 22Strap 1K0201656C
Diagrams & fitment data powered by oemdiagrams.com
5C0201055H Volkswagen Fuel Tank | Genuine OEM is fitted on: jetta 2010-2014; jetta 2014-2017.
