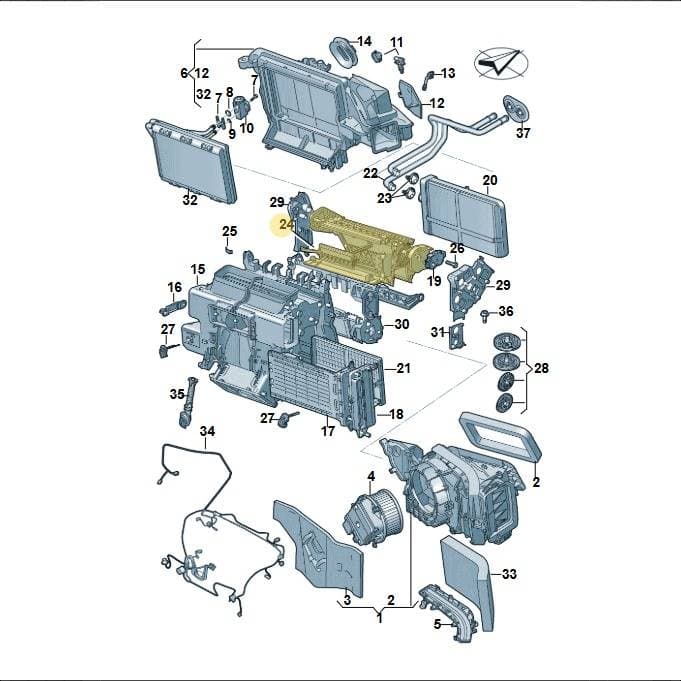

Number 24 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen HVAC Repair Set, part number 4M0898001. This repair set contains components necessary for servicing and restoring the proper function of the heating and air conditioning system. It is indicated at position 24 in the HVAC system diagram. Genuine OEM repair sets ensure that all included parts are designed to the exact specifications of the original components, guaranteeing correct fitment and performance for reliable climate control.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 18 × 14 × 3.5 cm
- Shipping weight
- 0.17 kg
Parts diagram & fitment
16 vehiclesRepair Set — locate 4M0898001 Volkswagen HVAC Repair Set | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(48)
- 1HousingRight4M2820024B
- 1HousingLeft4M1820024B
- 2SealRight4M2819229
- 2SealLeft4M1819229
- 3DampingmatRight4M2819587
- 3DampingmatLeft4M1819587
- 4EngineRight4M2820021B
- 4EngineRight8B2820021
- 4EngineLeft4M1820021B
- 4EngineLeft8B1820021
- 5CoverRight4M2819422
- 5CoverLeft4M1819422
- 6HousingLeft4M1820023B
- 6HousingRight4M2820023A
- 6HousingRight4M2820023B
- 6HousingLeft4M1820023A
- 7Parts Set 4M0898037A
- 8Seal Ring 4D0260749B
- 9Seal Ring 4E0260749B
- 10Expans Val 4M0816679
- 10Expans Val 4M0820679A
- 11Repair Kit 4M0898333A
- 12Spacer Pl 4M0820560
- 13Temperature Sensor 8K0820539
- 14Grommet 4M0820751
- 15Housing 4M0820356A
- 15Housing 4N0820356
- 15Housing 4N0820356A
- 15Housing 4M0820356
- 17Heater 4M0819011
- 18Cover 4M0819422A
- 18Cover 4M0819422
- 19Servomotor 4M0820511A
- 20Heat Exch 4M0898037C
- 21Filler Piece 4M0819593
- 22PipeRight4M2898037
- 22PipeLeft4M1898037
- 23Parts Set 4M0898037B
- 25Ten Spring 8K0898540A
- 26Bolts 8K0898540
- 27Temperature Sensor 6Q0820539
- 28Repair Kit 4M0898967A
- 28For Airbag: 4M0898967
- 29For Airbag:Left4M1898333A
- 29For Airbag:Left4M1898333B
- 29For Airbag:Left4M1898333C
- 29For Airbag:Right4M2898333
- 29For Airbag:Right4M2898333A
Compatible / alternative parts(2)
Diagrams & fitment data powered by oemdiagrams.com
4M0898001 Volkswagen HVAC Repair Set | Genuine OEM is fitted on: Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi RS4 Avant 2017-; Audi RS6 Avant 2019-; Audi RS7 Sportback 2019-; Audi Q8 e-tron 2018-2020; Audi RS Q8 Quattro 2019-; Audi A8L 2017-2022; Audi RS5 Sportback 2017-; Audi A5 Cabrio 2.0 2016-2018; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019; Audi Q5 2016-2020; Audi A5 Sportback 2016-2020; touareg 2017-2023.
