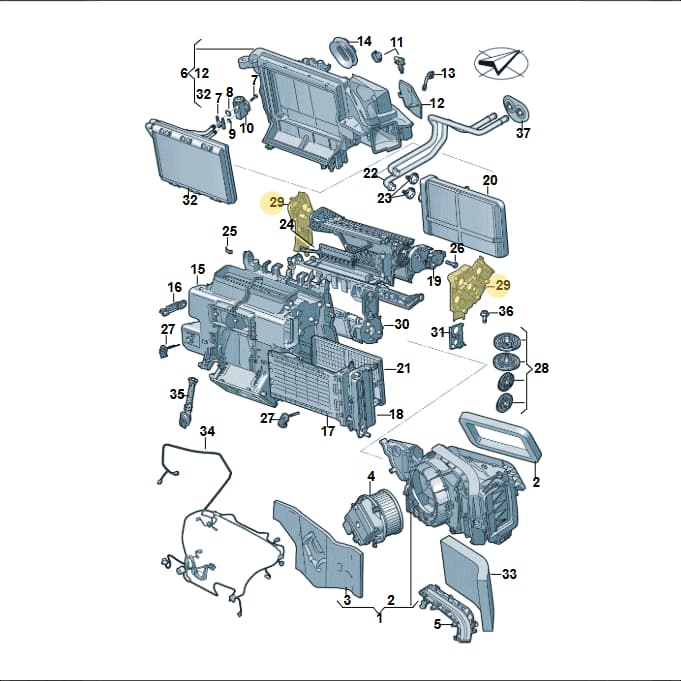

Number 29 marks the part’s position in the exploded view.
Product overview
Genuine OEM Audi HVAC Bracket Repair Set, part number 4M1898333C. This kit provides essential components for repairing a specific mounting bracket within the vehicle's heating and air conditioning assembly. It ensures the secure and stable positioning of internal HVAC components. Weighing 0.122 kg and measuring 0.31m x 0.18m x 0.07m, this genuine OEM repair set guarantees the precise fit and durability required for critical interior systems.
Technical details
- Category
- Heating & A/C
- Customs (HS) code
- 84149000
- Manufacturer
- Audi
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 31 × 18 × 7 cm
- Shipping weight
- 0.12 kg
Parts diagram & fitment
10 vehiclesRepair Set — locate 4M1898333C Audi HVAC Bracket Repair Set | Genuine OEM in the official exploded view and explore the surrounding assembly.
LThis part is the Left side
Parts in this assembly(48)
- 1HousingRight4M2820024B
- 1HousingLeft4M1820024B
- 2SealRight4M2819229
- 2SealLeft4M1819229
- 3DampingmatRight4M2819587
- 3DampingmatLeft4M1819587
- 4EngineRight4M2820021B
- 4EngineRight8B2820021
- 4EngineLeft4M1820021B
- 4EngineLeft8B1820021
- 5CoverRight4M2819422
- 5CoverLeft4M1819422
- 6HousingLeft4M1820023B
- 6HousingRight4M2820023A
- 6HousingRight4M2820023B
- 6HousingLeft4M1820023A
- 7Parts Set 4M0898037A
- 8Seal Ring 4D0260749B
- 9Seal Ring 4E0260749B
- 10Expans Val 4M0816679
- 10Expans Val 4M0820679A
- 11Repair Kit 4M0898333A
- 12Spacer Pl 4M0820560
- 13Temperature Sensor 8K0820539
- 14Grommet 4M0820751
- 15Housing 4M0820356A
- 15Housing 4N0820356
- 15Housing 4N0820356A
- 15Housing 4M0820356
- 17Heater 4M0819011
- 18Cover 4M0819422A
- 18Cover 4M0819422
- 19Servomotor 4M0820511A
- 20Heat Exch 4M0898037C
- 21Filler Piece 4M0819593
- 22PipeRight4M2898037
- 22PipeLeft4M1898037
- 23Parts Set 4M0898037B
- 24Repair Kit 4M0898001
- 25Ten Spring 8K0898540A
- 26Bolts 8K0898540
- 27Temperature Sensor 6Q0820539
- 28Repair Kit 4M0898967A
- 28For Airbag: 4M0898967
- 29For Airbag:Left4M1898333A
- 29For Airbag:Left4M1898333B
- 29For Airbag:Right4M2898333
- 29For Airbag:Right4M2898333A
Diagrams & fitment data powered by oemdiagrams.com
4M1898333C Audi HVAC Bracket Repair Set | Genuine OEM is fitted on: Audi Q8 Quattro 3,0 2018-; audi a6 2.0 2018-; Audi A7 Sportback 2018-; Audi RS6 Avant 2019-; Audi RS7 Sportback 2019-; Audi Q8 e-tron 2018-2020; Audi RS Q8 Quattro 2019-; audi a4 2.0 2015-2019; Audi Q7 qu. 3.0 TDI 2015-2019; touareg 2017-2023.
