Target · Diagram
Find this reference above

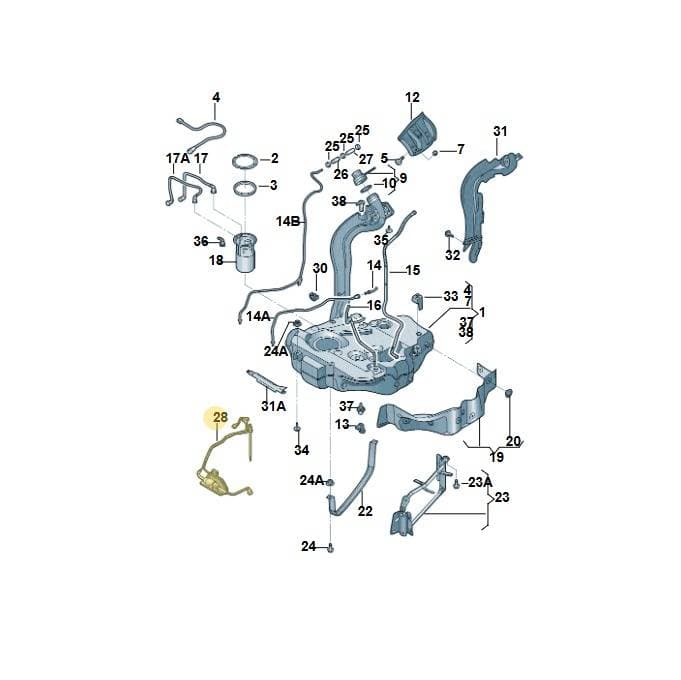

Number 28 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Extraction Unit, part number 1K0201607AD. This unit extracts fuel from the tank and meters it for delivery to the engine. It is located in the fuel tank assembly. Genuine OEM extraction units are precisely calibrated to ensure accurate fuel metering and optimal engine performance.
Technical details
- Category
- Engine
- Country of origin
- Germany
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 29.5 × 27 × 11.5 cm
- Shipping weight
- 0.61 kg
Parts diagram & fitment
11 vehiclesExtraction Unit With Metering Pump — locate 1K0201607AD Volkswagen Extraction Unit | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(30)
- 1Container 1K0201060DK
- 1Container 1K0201060DQ
- 1Fuel Tank 1K0201060FG
- 1Fuel Tank 1K0201060FQ
- 1Container 1K0201060GA
- 1Fuel Tank 1K0201060GL
- 2Part 1K0201375
- 2Part BCB201375
- 3Seal Ring 8E0919133B
- 3Seal Ring 1J0919133B
- 4Line 1J0201142A
- 5Bolt N10189407
- 7Bush 1J0201048C
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 1K0201550AL
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 1K0201550AM
- 9Ap&cap With Retaining Strap For Fuel Tank Cap 5C0201550AB
- 10Seal Ring 1K0201557A
- 11Heat Sh 1K0201308L
- 14Pipe 1K0201931G
- 15Line 1K0201993M
- 15Line 1K0201993AF
- 16Line 1K0201995F
- 19Heat Sh 1Q0201307C
- 20Washer N90335005
- 22Strap 1K0201656C
- 24Bolt N0195308
- 25Clip N10199201
- 27Part N10303504
- 28Metering 1K0201607N
- 32Pop Rivet N91078801
Diagrams & fitment data powered by oemdiagrams.com
1K0201607AD Volkswagen Extraction Unit | Genuine OEM is fitted on: JETTA 06> 2006-; golf 2.0 2008-2011; Golf Plus 1.6 2009-2011; golf estate 2009-2013; jetta 2010-2014; Golf 2011-2013; Golf Plus 2011-2014; jetta 2014-2017; octavia ambiente 2008-2013; Yeti 2009-2013; Yeti 2013-2017.
