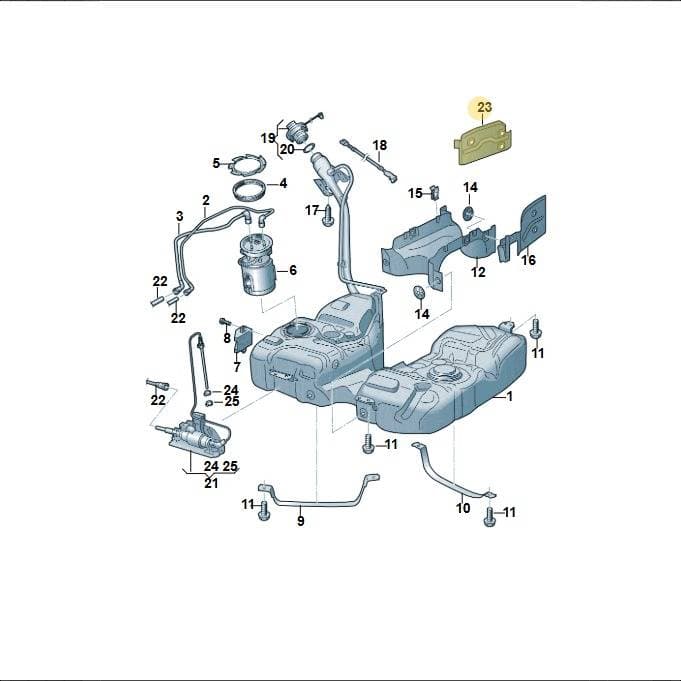

Number 23 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Heat Shield, part number 7N0201308E. This heat shield protects components from radiant heat. It is located in the underbody assembly, near the exhaust system. Genuine OEM heat shields are manufactured from specific materials and contours to provide optimal thermal protection and durability.
Technical details
- Category
- Exhaust
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 43 × 21.5 × 9 cm
- Shipping weight
- 0.12 kg
Parts diagram & fitment
4 vehiclesHeat Shield — locate 7N0201308E Volkswagen Heat Shield | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(22)
- 1Container 7N0201060AB
- 1Container 7N0201060AG
- 2Fuel Line 7N0201293A
- 3Fuel Line 7N0201294
- 5Part 1K0201375
- 7Retainer 5N0201292B
- 8Bolt N10471802
- 9Strap 7N0201656A
- 10Strap 7N0201655A
- 11Bolt N0195307
- 12Heat Sh 7N0201308C
- 14Washer N90335005
- 15Clip 7N0201402
- 16Heat Sh 7N0201308D
- 17Bolt N90693804
- 18Line 1J0201142A
- 19Part 7N0201550G
- 20Seal Ring 1K0201557A
- 21Part 7N0201607E
- 21Part 7N0201607C
- 24Clamp N10203501
- 25Clamp N10198301
Diagrams & fitment data powered by oemdiagrams.com
7N0201308E Volkswagen Heat Shield | Genuine OEM is fitted on: Sharan Blue Motion 2010-2015; Sharan BlueMotion 2015-2022; Alhambra Stylance 2010-2013; Alhambra Stylance 2015-2022.
