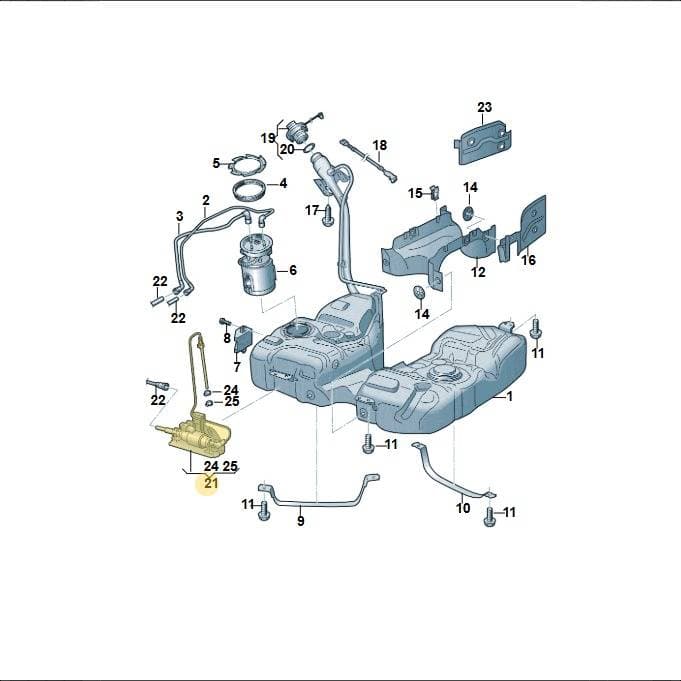

Number 21 marks the part’s position in the exploded view.
Product overview
Genuine OEM Volkswagen Extraction Unit, part number 7N0201607E. This unit extracts fuel and meters it for combustion. It is located at position 21 in the fuel system assembly. The unit weighs approximately 0.6 kg. Genuine OEM parts ensure precise calibration and reliable performance for your fuel system.
Technical details
- Category
- Engine
- Customs (HS) code
- 87089997
- Manufacturer
- Volkswagen
- Product Type
- Genuine new auto parts
- Shipping size (L × W × H)
- 39.7 × 20.7 × 11.7 cm
- Shipping weight
- 0.6 kg
Parts diagram & fitment
4 vehiclesExtraction Unit With Metering Pump — locate 7N0201607E Volkswagen Extraction Unit | Genuine OEM in the official exploded view and explore the surrounding assembly.
Parts in this assembly(22)
- 1Container 7N0201060AB
- 1Container 7N0201060AG
- 2Fuel Line 7N0201293A
- 3Fuel Line 7N0201294
- 5Part 1K0201375
- 7Retainer 5N0201292B
- 8Bolt N10471802
- 9Strap 7N0201656A
- 10Strap 7N0201655A
- 11Bolt N0195307
- 12Heat Sh 7N0201308C
- 14Washer N90335005
- 15Clip 7N0201402
- 16Heat Sh 7N0201308D
- 17Bolt N90693804
- 18Line 1J0201142A
- 19Part 7N0201550G
- 20Seal Ring 1K0201557A
- 21Part 7N0201607C
- 23Heat Sh 7N0201308E
- 24Clamp N10203501
- 25Clamp N10198301
Diagrams & fitment data powered by oemdiagrams.com
7N0201607E Volkswagen Extraction Unit | Genuine OEM is fitted on: Sharan Blue Motion 2010-2015; Sharan BlueMotion 2015-2022; Alhambra Stylance 2010-2013; Alhambra Stylance 2015-2022.
